Coolers

ADCooler S/L

ADcooler is an adiabatic dry-cooler that utilizes ambient air to cool process water.

By leveraging the evaporation of water through adiabatic pads, the air entering the heat exchange coils (dry-cooler) is significantly cooler than the surrounding air.

Consequently, the ADcooler system consistently cools the water to a temperature lower than the ambient air, without contaminating or consuming the process water.

Benefits

Efficient Cooling

The ADcooler uses ambient air and adiabatic pads to cool process water, ensuring the water temperature is consistently lower than the surrounding air temperature. This results in high performance even in hot conditions.

Water Conservation

The system does not consume or contaminate process water, making it environmentally friendly and cost-effective.

No Water Stagnation

The design prevents water stagnation and eliminates the need for water spray in the air stream, enhancing system hygiene and reducing maintenance.

Features:

Positioned on both sides of the unit with a larger surface area compared to the heat exchange coils.

The water quantity for the adiabatic effect is controlled by a patented system.

Constructed from copper and aluminum.

Optional feature allowing operation without glycol.

Managed by a microprocessor control system.

PWC New

(A)DCooler + KIT BROCHURE

Filename
ADCooler-ADColler KIT.pdf
Size
28 MB
Format
pdf

ADCooler KIT

The ADCooler KIT Series is engineered to efficiently cool both individual and centralized systems under demanding conditions.

Each model comes equipped with inlet and outlet collectors, as well as a water pump, to simplify installation.

The ADCooler line adheres to European antilegionella standards.

Replacement

Replaces evaporative towers, matching their performance while eliminating water consumption.

Efficiency

Prevents mucilage and limestone formation, maintaining system efficiency.

Cooling

Uses adiabatic pads to cool air sharply without depositing on coil fins.

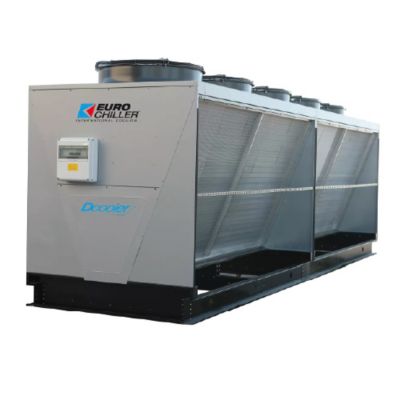

ADCooler

Dcooler

Innovative and Efficient Dry-Cooler Solutions

The Dcooler Series is a competitively priced dry-cooler with high innovative content, ideal for various cooling applications. The DCooler KIT Series efficiently cools both individual and centralized systems under demanding conditions. Each model includes inlet and outlet collectors and a water pump for easy installation. It cools water through forced circulation of ambient air at a lower temperature (free-cooling).

Product details
