Key Cooling Points in the Extrusion Process
- Quenching
- Calibrating
- Air Cooling
- Final Cooling
- Advanced Techniques
Quenching

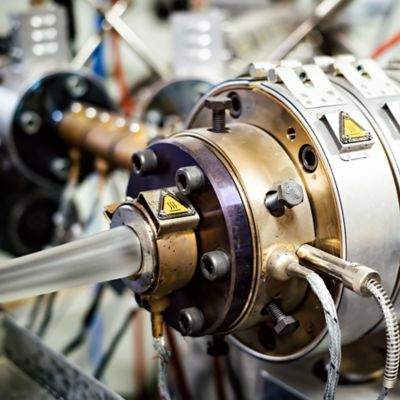

As the molten plastic exits the extrusion head, it is at its highest temperature, often exceeding 200°C. Immediate quenching is necessary to solidify the outer layer and set the initial shape. This rapid cooling is typically achieved using air or water sprays. Managing the thermal gradient between the core and the surface of the extrudate is crucial, as a steep gradient can lead to internal stresses and potential cracking. Controlled cooling helps in gradually reducing this gradient.
Calibrating
Calibrators are used to maintain the precise dimensions of the extrudate. These devices often incorporate cooling elements to stabilize the shape as the material passes through. Cooling tanks, usually filled with water, provide a controlled environment for gradual cooling. The temperature of the water is meticulously regulated to ensure uniform cooling. The length and temperature of the cooling bath are adjusted based on the material type and thickness. The design of the cooling tanks, including the flow rate and turbulence of the water, is optimized to maximize heat transfer efficiency, ensuring that the extrudate cools uniformly without hotspots.
Air Cooling
Final Cooling
Advanced Techniques
Advanced cooling techniques include the use of chilled rollers, which provide precise cooling and surface finishing. These rollers are temperature-controlled and help in achieving a smooth, defect-free surface. In some high-speed extrusion processes, vacuum cooling is employed to rapidly reduce the temperature of the extrudate. This technique is particularly useful for thin-walled or high-output applications. For specialized applications, cryogenic cooling using liquid nitrogen can be used to achieve extremely low temperatures quickly. This method is used for materials that require rapid solidification to maintain specific properties.
